Description

To make it harder for an attacker to overwrite the next ptr in a free tcache or fastbin chunk, newer libc versions feature a security measure called “Safe Linking” (version 2.32 and onwards). This means that the next ptr in the free chunk is not stored in plaintext, but rather it is mangled.

Some information about the tcache

Consider the following scenario: Imagine we have 2 chunks allocated with malloc(0x40): Chunk0 and chunk1. First chunk1 is freed and then chunk0. Now in the tcache 0x50 bin you will have the following layout: chunk0 -> chunk1.
This means that chunk0 is the ‘head’ of the 0x50 tcache bin (0x50 because 0x40+0x10 for metadata such as size field). The head is the first chunk to be allocated if a malloc(0x40) occurs, since the tcache uses last-in-first-out (like a stack).
But in order to keep track of the next elements in the same bin, the tcache uses a ptr to the user data of the next chunk. If this ptr is overwritten by an attacker, they can control where the next allocation will be, giving them a lot of control.
To try and mitigate this, safe linking has been employed, so that an attacker cannot ‘just’ overwrite the next ptr with a plain text value. They need a heap leak first, since safe linking uses the heap addresses to mangle the next ptr before storing it.

Safe Linking

To put it plainly, safe linking works by doing the following:

chunk0->fd = (chunk0 >> 12) ^ chunk1

Take the address of chunk0 and right shift 12 bits, then xor with chunk1 and store result at the address of chunk0.

To get back the original ptr, do the following:

read_fd = (chunk0 >> 12) ^ chunk1

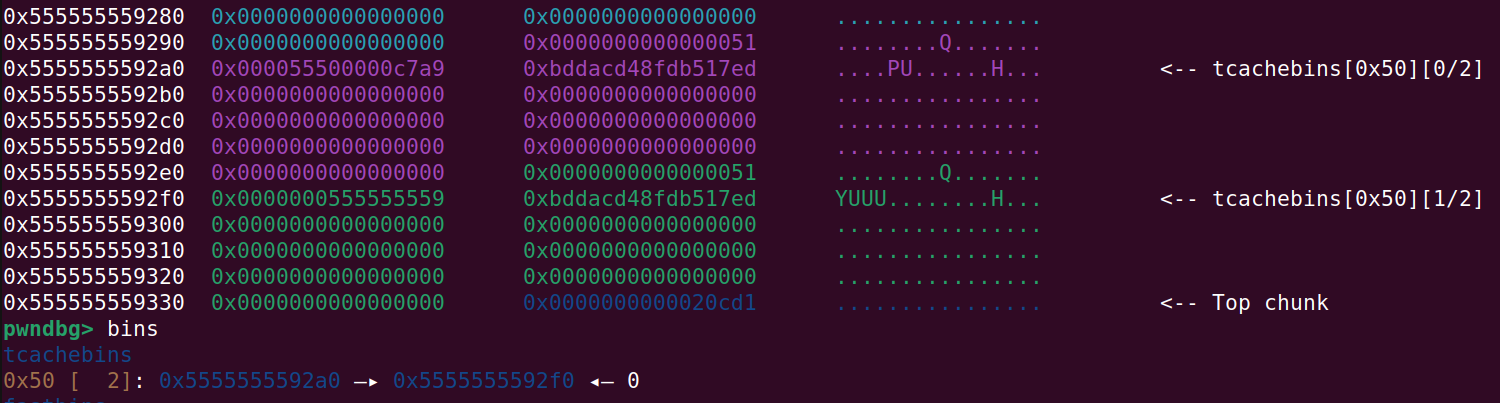

Below is a picture that illustrates safe linking:

chunk0 is at addr: 0x5555555592a0
chunk1 is at addr: 0x5555555592f0

So to do safe linking here:
chunk0->fd = (0x5555555592a0 » 12) ^ 0x5555555592f0

chunk0->fd is the first value you see at address 0x5555555592a0: 0x000055500000c7a9
